NC9500

Multi-Pocket Fitness Sorter

RESTLESSLY IN SEARCH OF GREATER PERFORMANCE

NC9500 is so far the most powerful fitness sorter in MA product portfolio, featuring expandable modular stacker design that comes with options of 200-note / 500-note capacity to process even more banknotes in one operation; plus enhanced and reliable banknote authentication and fitness-sorting.

Easy modes switching to fulfill all kind of cash handling process, it reduces workload with high speed and accuracyby using the most advanced counterfeit detection technology in the industry. Supporting most of the currencies worldwide, and various possibilities for connectivity, NC9500 satisfies the demand for large banknote handling environment

Features

Efficient

Capable of sorting mixed banknote by denomination, fitness, orientation with fewer steps and shorter overall processing cycle.

Fitness

Sorting banknote by fitness or quality with its capability to detect folded corners, holes, soil, tears and tape as unfit notes.

Multi Currency

Capable of recognizing multi-currency based on character of each banknote.

DURABLE AND RELIABLE

Designed for heavy duty usage and long lasting.

CONNECTIVITY

Can be connected to printer or system through LAN; operator can print out serial numbers or all vital operating results of the processed banknotes. Software upgrade could be done by PC, SD card, LAN.

Up to 16 Stackers & 1 Reject

Built-in Dust Cleaning System

INDIVIDUAL STACKER CONFIGURATION

Multi User

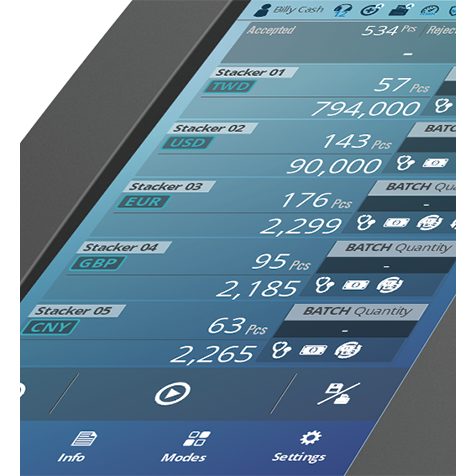

TOUCH PANEL DISPLAY

SPECIFICATIONS


	Feeding System	Friction Roller System
	Sorting Modes	Count, Mix, Sort, Face, Orientation, Fitness, Emission
	Counterfeit Detection	Visible Light, Infrared, Magnetic, Ultraviolet
	Capacity	1000 Banknotes (Hopper) 200 Banknotes (Per Stacker, Main Unit) 200 / 500 Banknotes (Additional Stacker) 100 Banknotes (Reject Pocket)
	Sorting Speed	1000 Note/Min. (High) 900 Note/Min. (Mid) 750 Note/Min. (Low)
	Available Currencies	USD, EUR, GBP, LOCAL (Option) Up to 32 currencies
	Countable Note Size	50 x 100 x 0.06mm ~ 90 x 185 x 0.12mm
	Display	7” Touch Screen
	Interface	LAN, RS232, USB, External Display
	Power Supply	AC100V ~ 240V, 50/60Hz
	Consumption	Max. 200W
	Net Weight	Approx. 50Kg (Main Unit) Approx. 7Kg (Additional Stacker 200-Note) Approx.10.5Kg (Additional Stacker 500-Note)
	Dimension(mm)	Approx. 882 x 348 x 503 (Main Unit) Approx. 882 x 348 x 130 (Main Unit Base) Approx. 215 x 348 x 395 (Additional Stacker 500-Note) Approx. 215 x 348 x 276 (Additional Stacker 200-Note) Approx. 215 x 348 x 130 (Additional Stacker Base)
	Optional Features	S/N Scan, Cheque Scan, TITO
	Max. Stacker Q'ty	Up to 16
